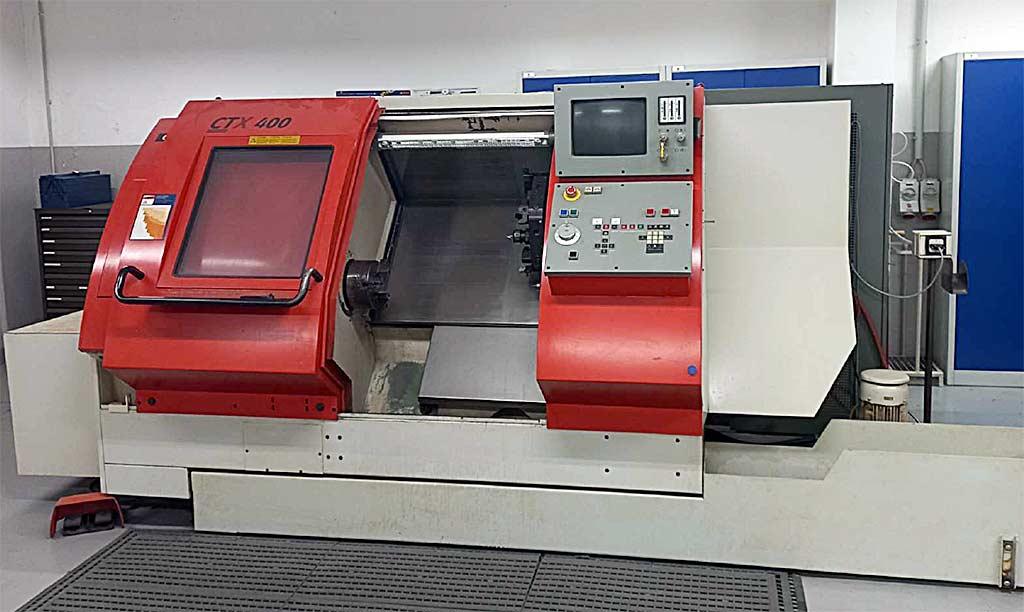

CNC Lathe Gildemeister CTX 400
Specifications
Germany
Description

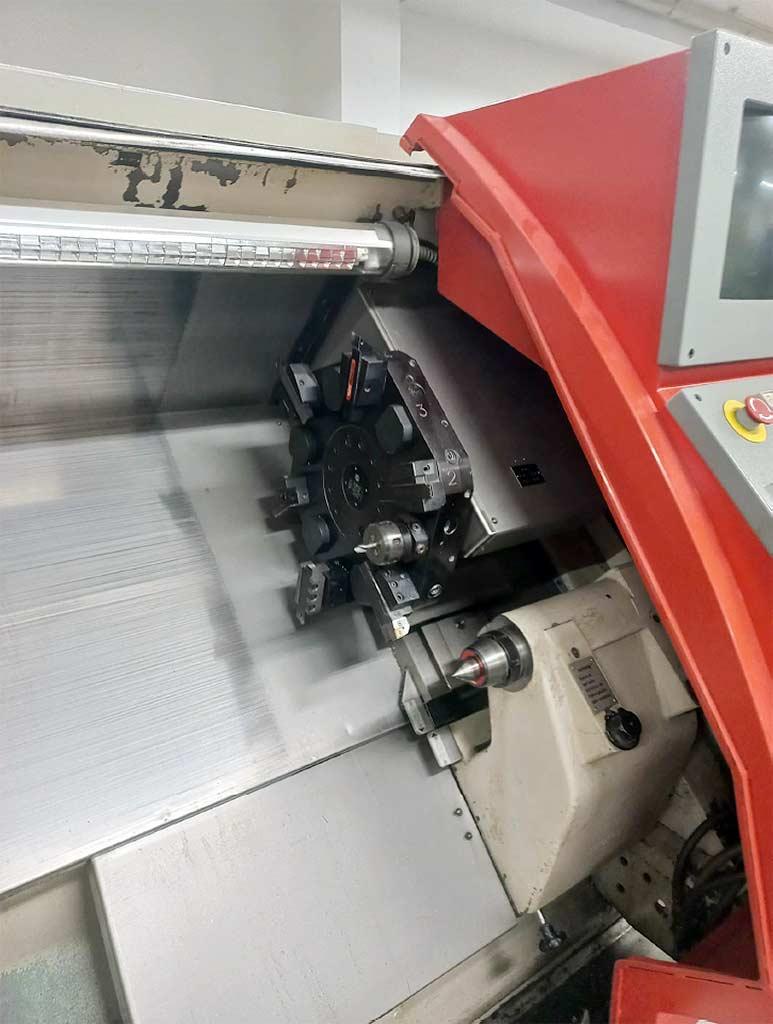

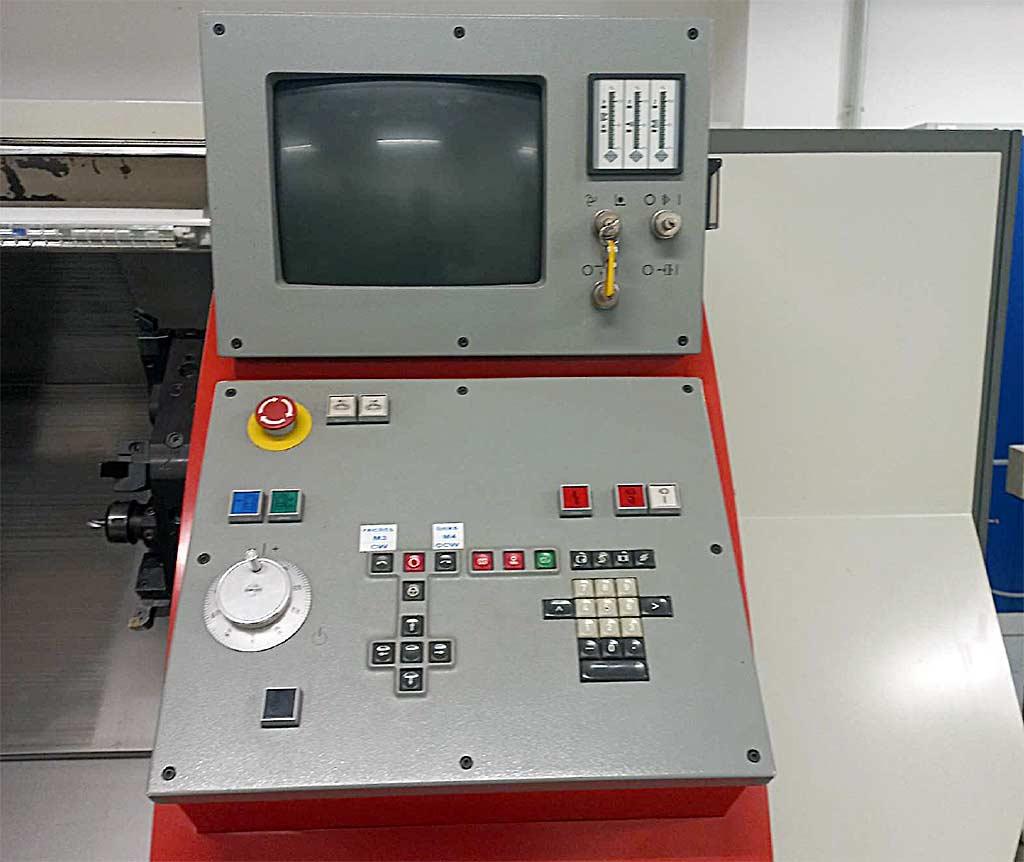

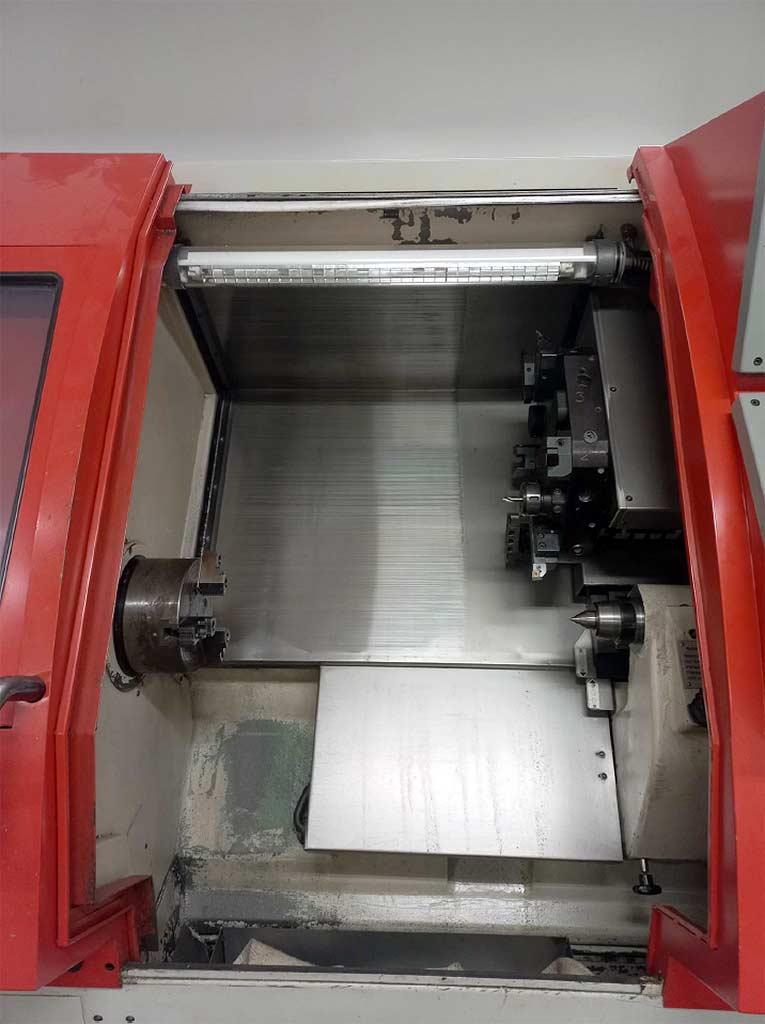

Travel X/Z: 210mm/640mm, spindle head diameter in front bearing: 100mm, spindle diameter: 72mm, spindle speed: 5000rpm, turning diameter over bed/support: 500mm/290mm, turning length: 600mm, spindle power: 22kW, max. torque: 263Nm, tool turret: 12, fast travel X/Z: 10m/15m/min, chuck diameter: 200mm. Machine dimensions X/Y/Z: approx. 4600mm/2000mm/1800mm, weight: approx. 5300kg. Documentation available. On-site inspection is possible. The function of the machine is limited, as the buffer battery on the control unit is probably empty.
Additional Details
