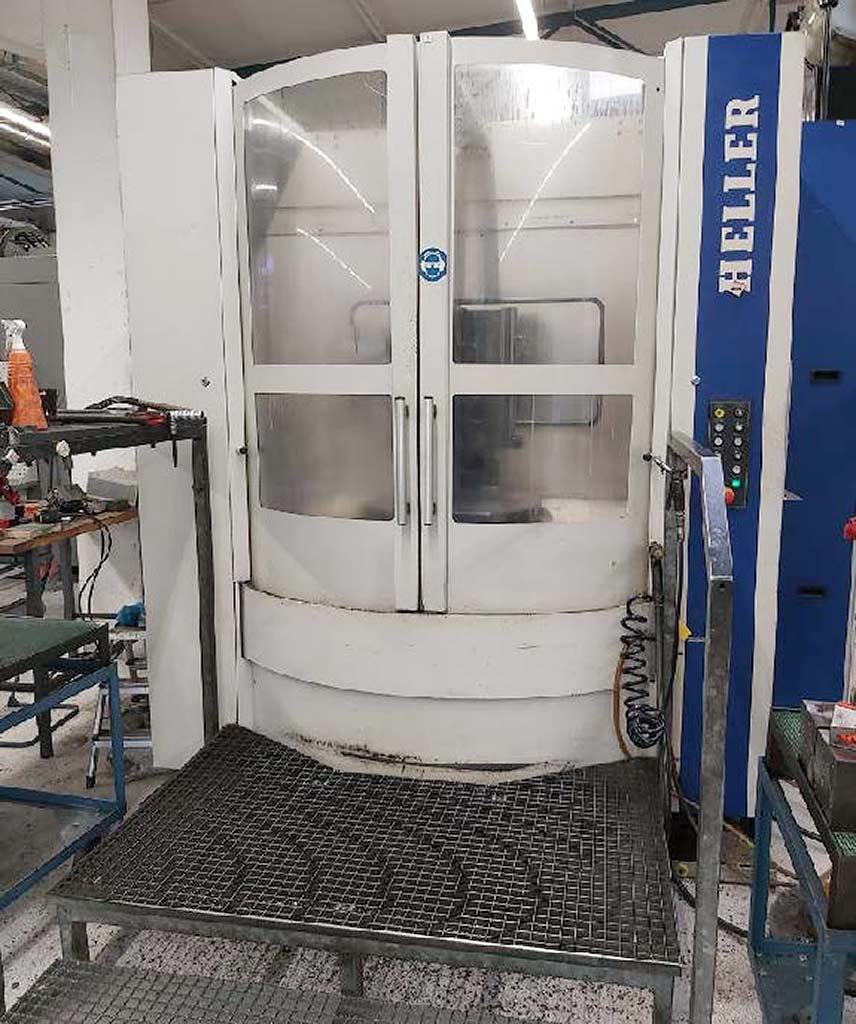

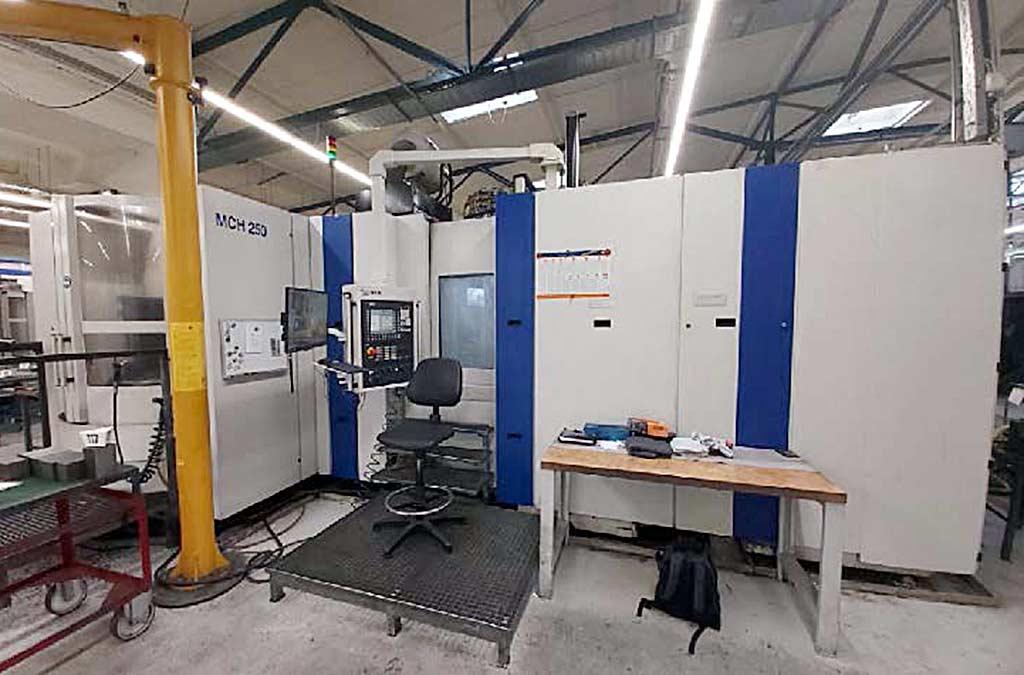

CNC Machining Center Heller MCH 250

Germany

Description

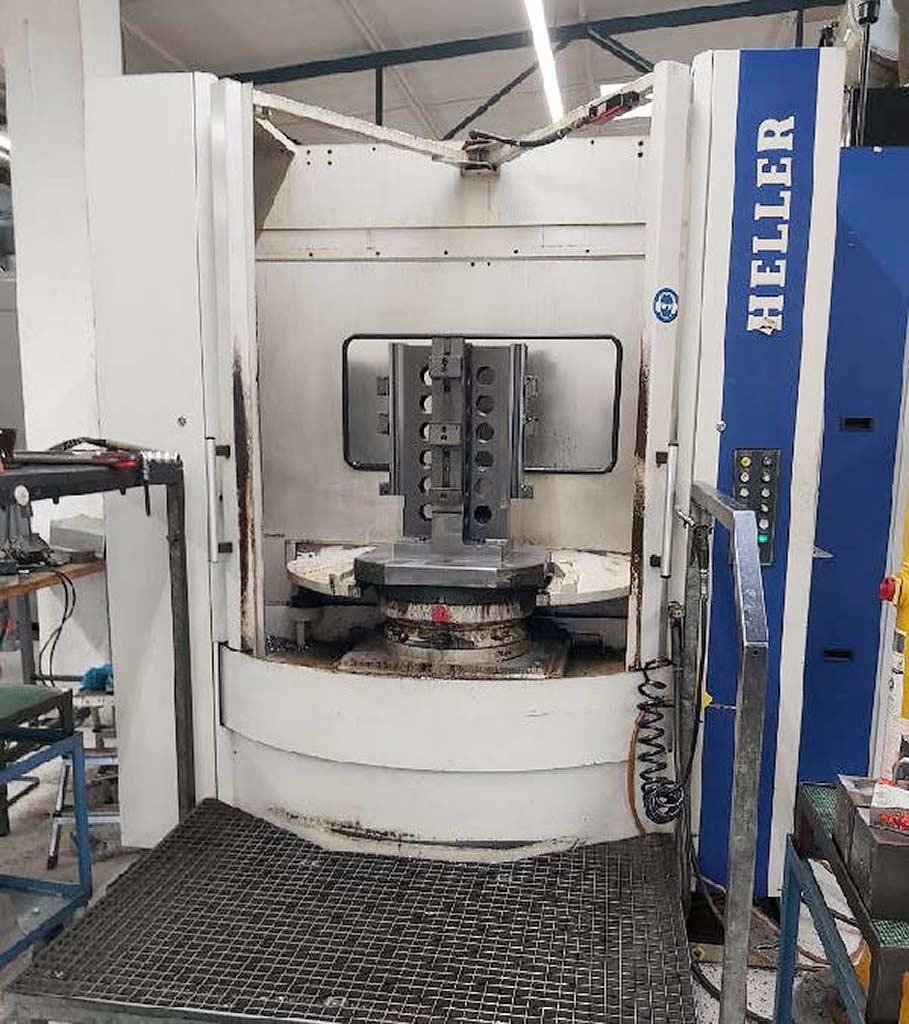

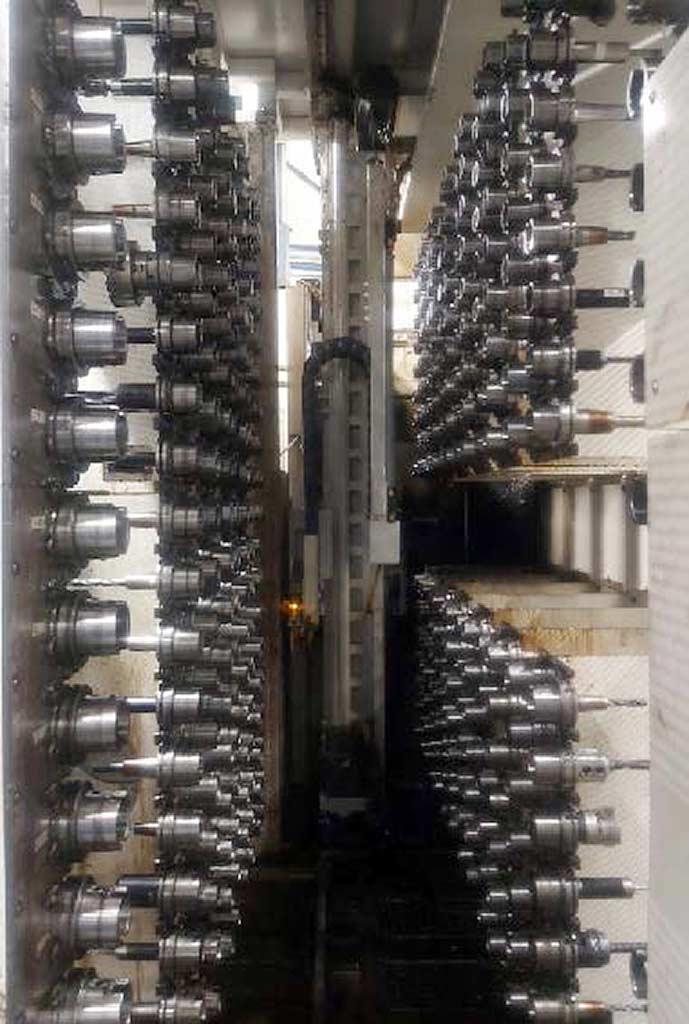

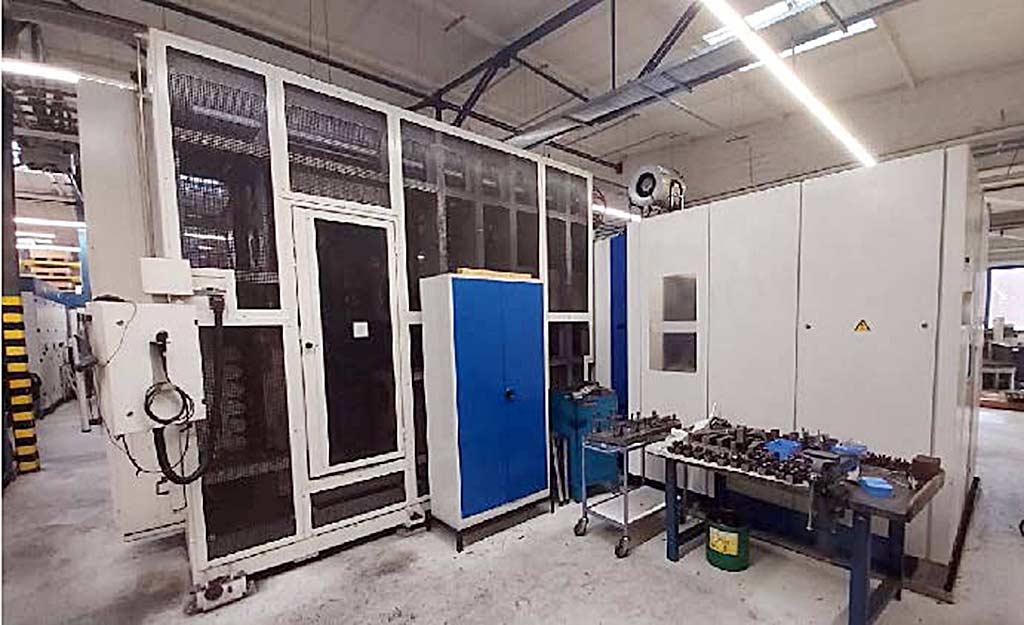

Travel X/Y/Z: 800mm/800mm/800mm, feed force X/Y/Z: 15000N/15000N/17500N, feed speed X/Y/Z: 50m/min, max. rotary table speed: 25rpm, spindle diameter: 100mm, tool holder: HSK 100, spindle power S1-100%: 40kW, spindle speed: 6000rpm. Magazine capacity for a maximum tool diameter of 280mm: 23. Max. pallet dimensions X/Y: 630mm/630mm, max. pallets in the system: 6, coolant tank volume: 1500l, 50bar high-pressure pump delivery rate: 22l/min. Machine dimensions X/Y/Z: approx. 6300mm/4900mm/4000mm, weight: approx. 19,300kg, control: Siemens 840D powerline, operating hours: 74,637h. Includes integrated tool monitoring IPM, remote diagnostics via modem, Renishaw MP10 touch probe, RSP 4-position round storage, chip removal, coolant system with Knoll VRF 250 vacuum rotary filter, pallet changing device, 6 pallets, 4 of which are clamping towers with universal clamping bars, approx. 100 HSK 100 tool holders, and Losma filter system. Documentation available. On-site inspection is possible. Expected to be available from the end of January 2025.
