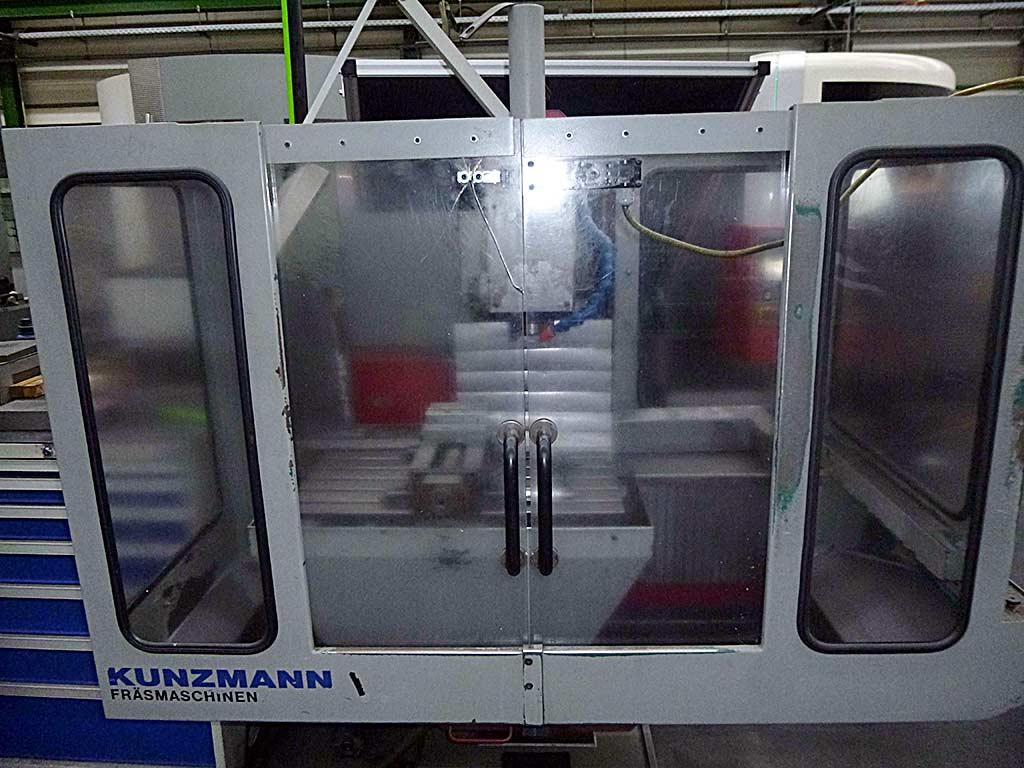

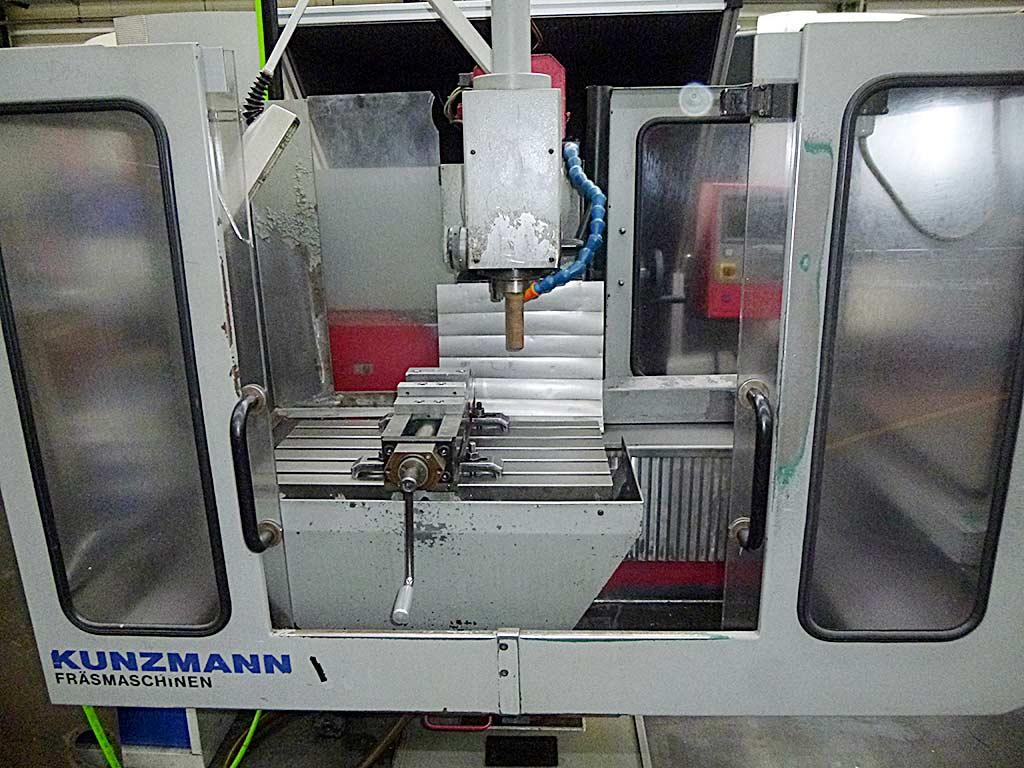

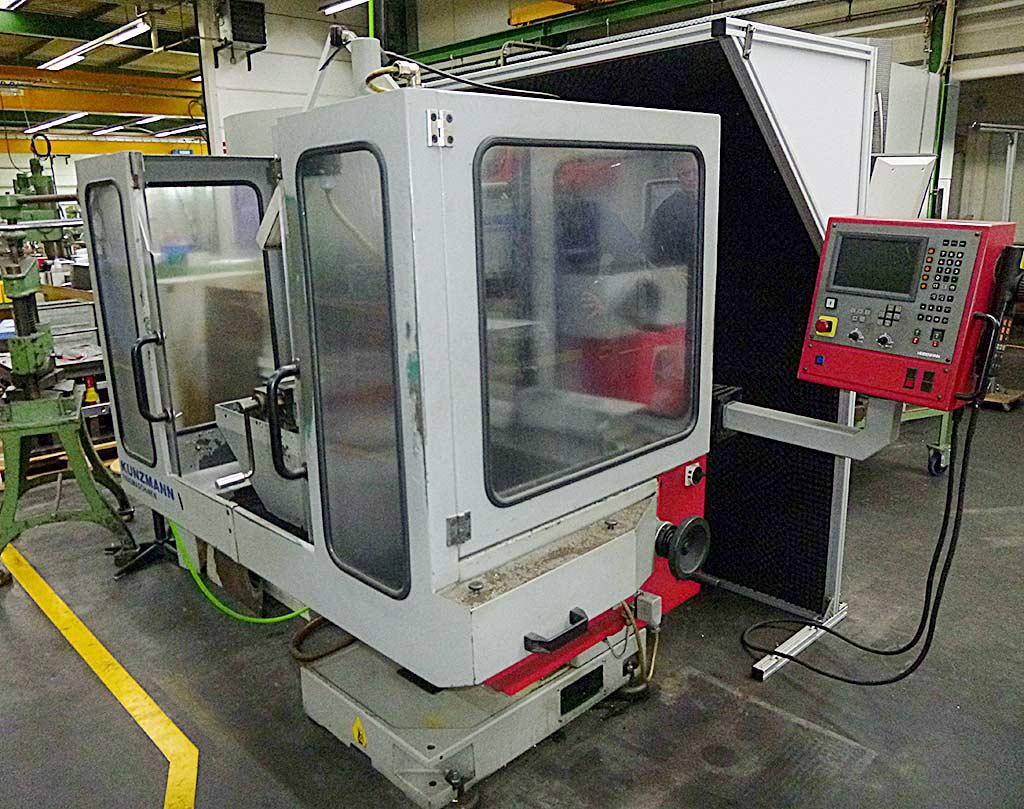

CNC Universal Milling Machine Kunzmann WF 4/3

Germany

Description

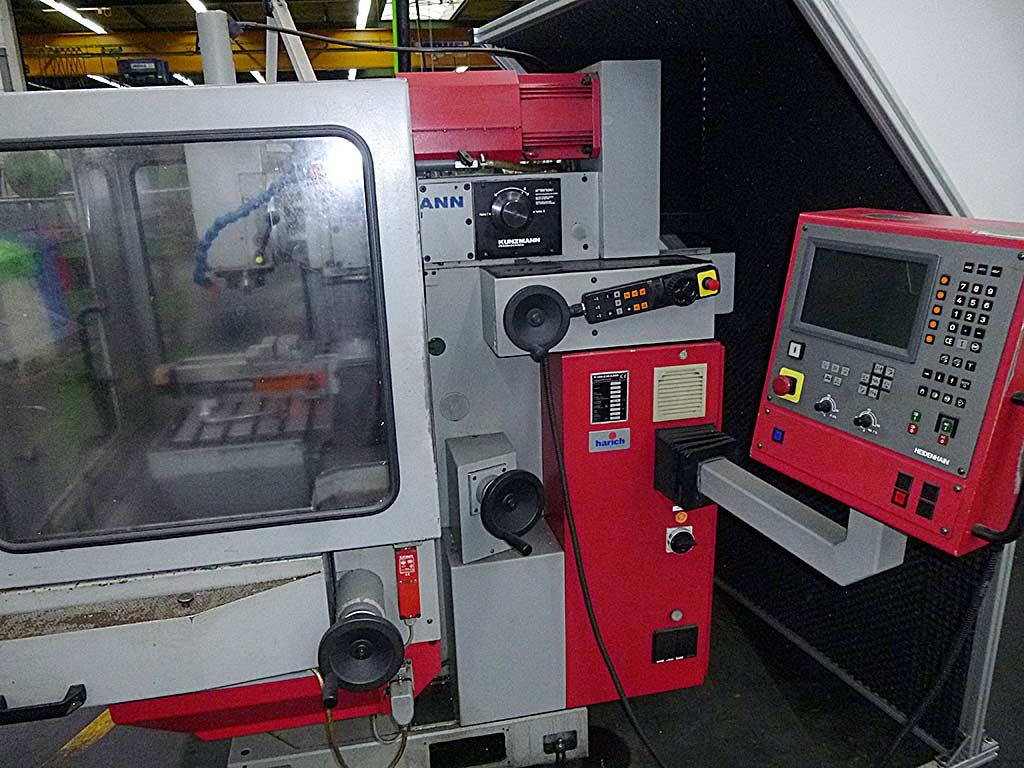

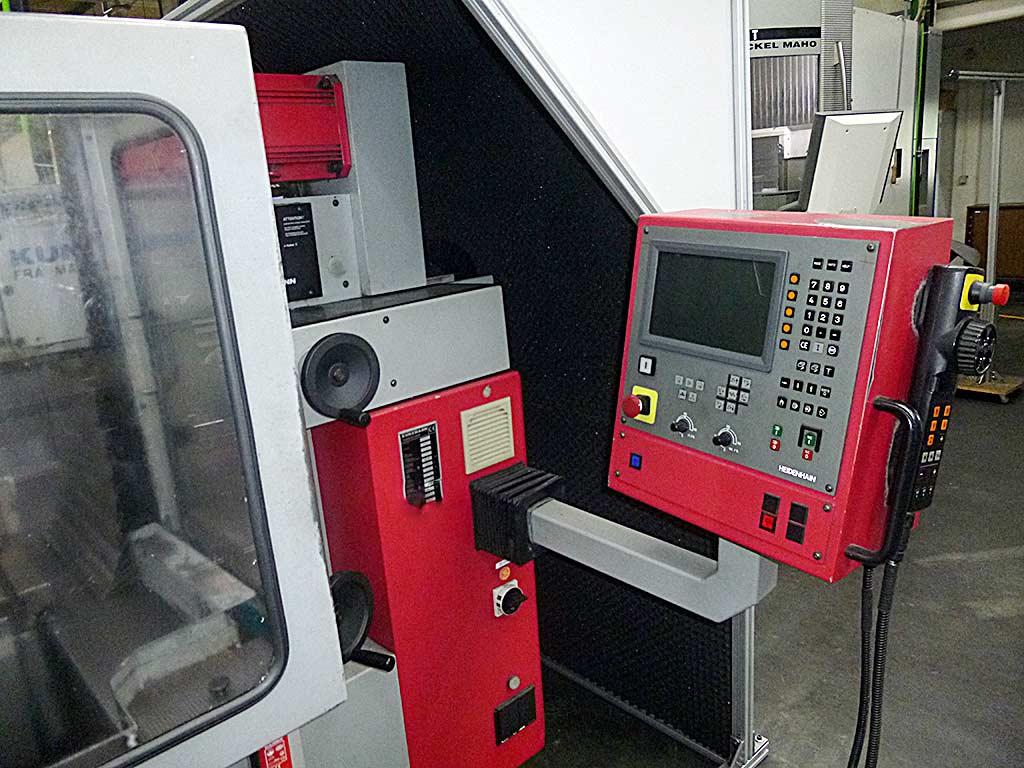

X-axis: 400mm, Y-axis: 350mm, Z-axis: 400mm, table dimensions: 650mm/350mm, tool holder: SK 40, spindle speed: 1-4000/min, quill stroke: 60mm, max. feed: 2000mm/min, control: Heidenhain TNC 124, connected load: 5.5kW, dimensions: 2000mm/1000mm/2100mm, weight: 1.8t. The machine is not functional, errors occur repeatedly: Problems with the movement monitoring of the Z and Y axes, gross positioning error on the Z axis, faults when moving the control housing. The operational readiness controller is missing and appears continuously when switching on. A reference run is possible after several attempts. The spindle gear is worn out. On-site inspection is possible.
