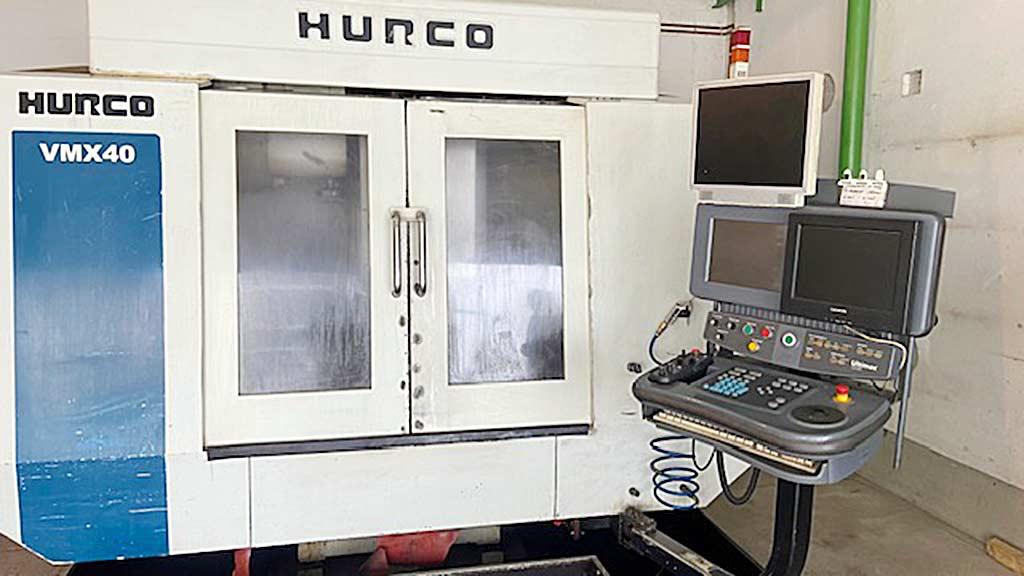

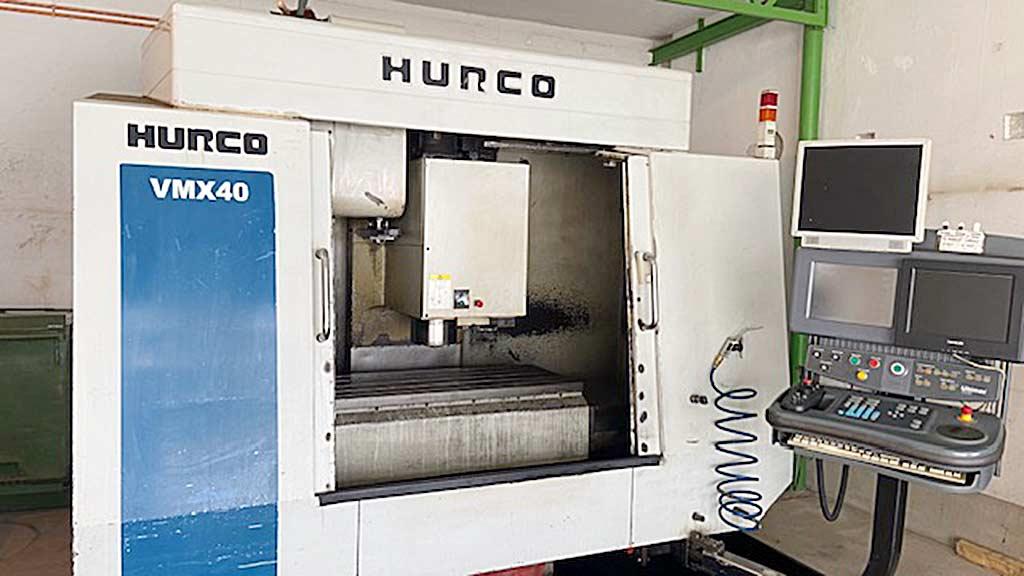

CNC Machining Center Hurco VMX 40

Germany

Description

Travel X/Y/Z: 1020mm/510mm/610mm, speed: 10000rpm, rapid traverse X/Y/Z: 24m/24m/20m/min, table spindle nose distance: 150mm/760mm, spindle mount: SK-A40, spindle power: 15kW, T-slot width: 18mm, T-slot distance: 100mm, tool positions: 24, table dimensions X/Y: 1220mm/510mm, max. table load: 750kg, machine weight: approx. 5500kg. The machine was equipped with a new spindle, a new tool changer and a new servo motor by Hurco Service 3000 hours ago. Including approx. 850l new deep-hole drilling oil Rhenus UA 19S, 2x deep-hole crown drills with a diameter of 50mm, various thread ring gauges, mandrels and calibers. Documentation available. On-site inspection is possible.
