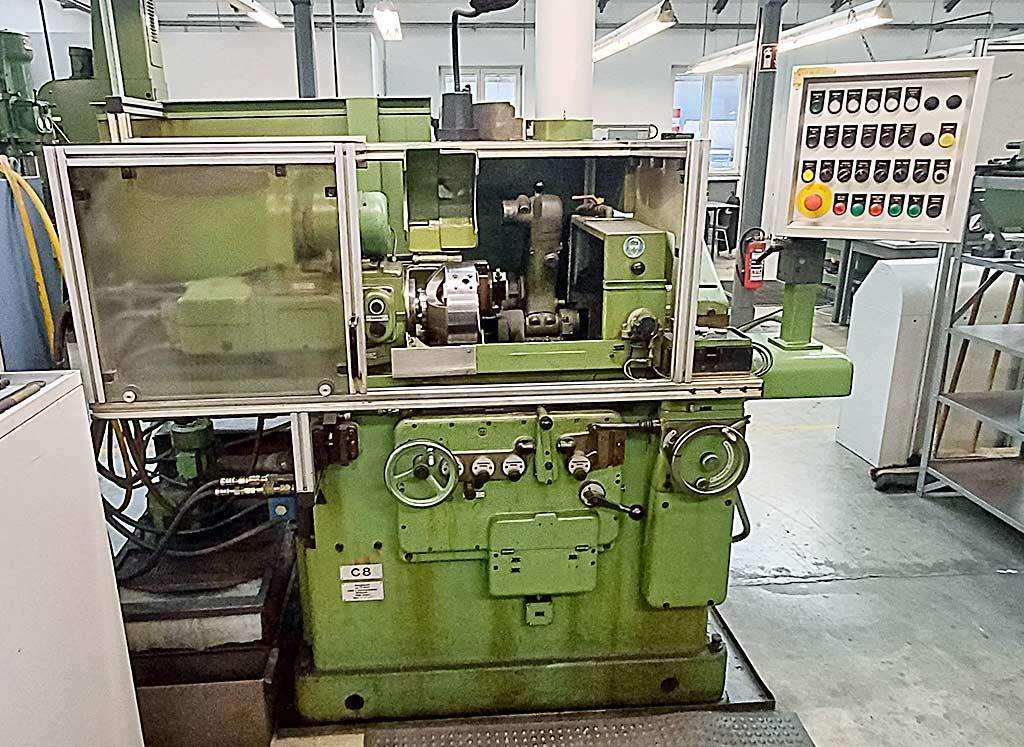

Internal Cylindrical Grinding Machine Jung C8
Specifications
Germany
Description

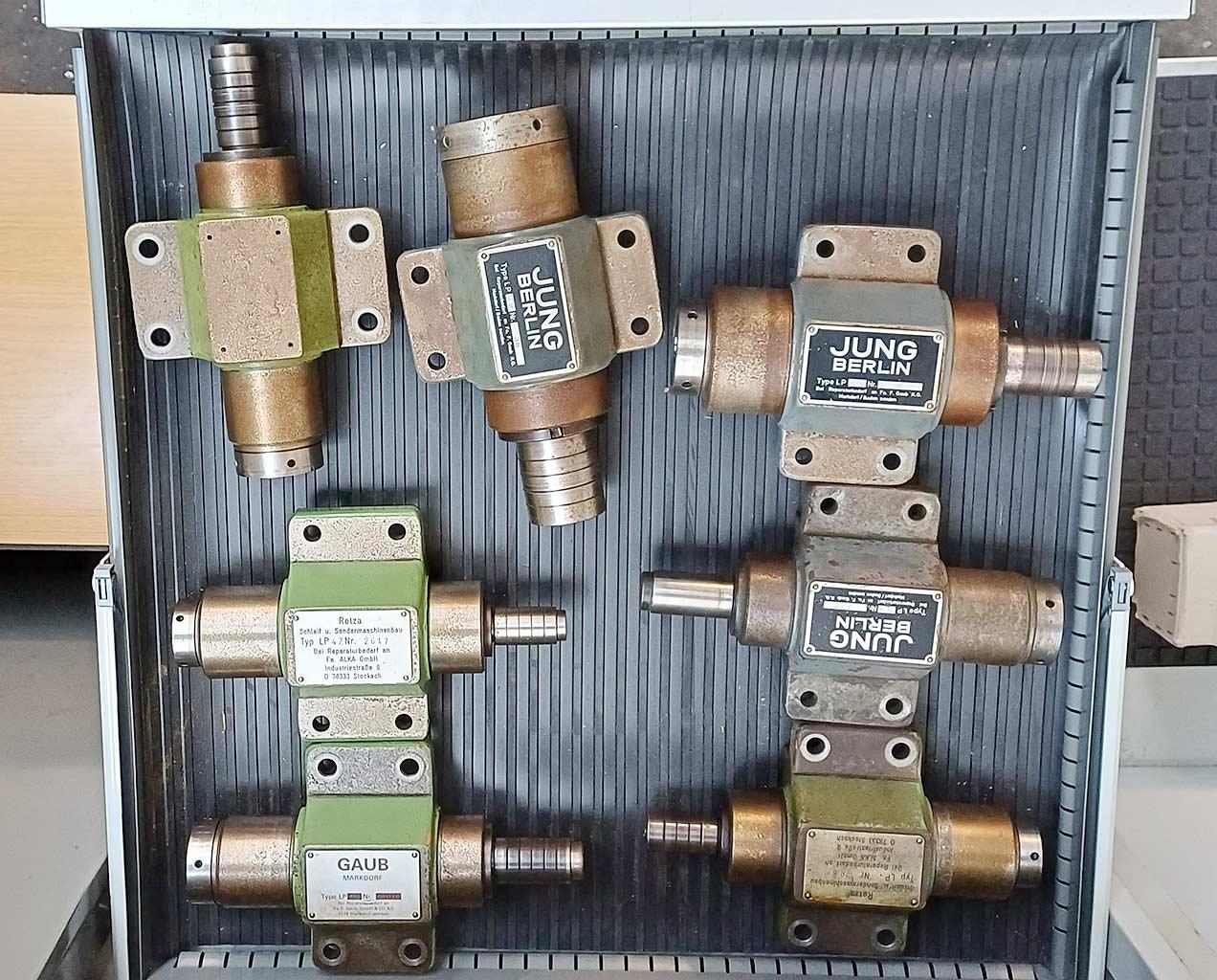

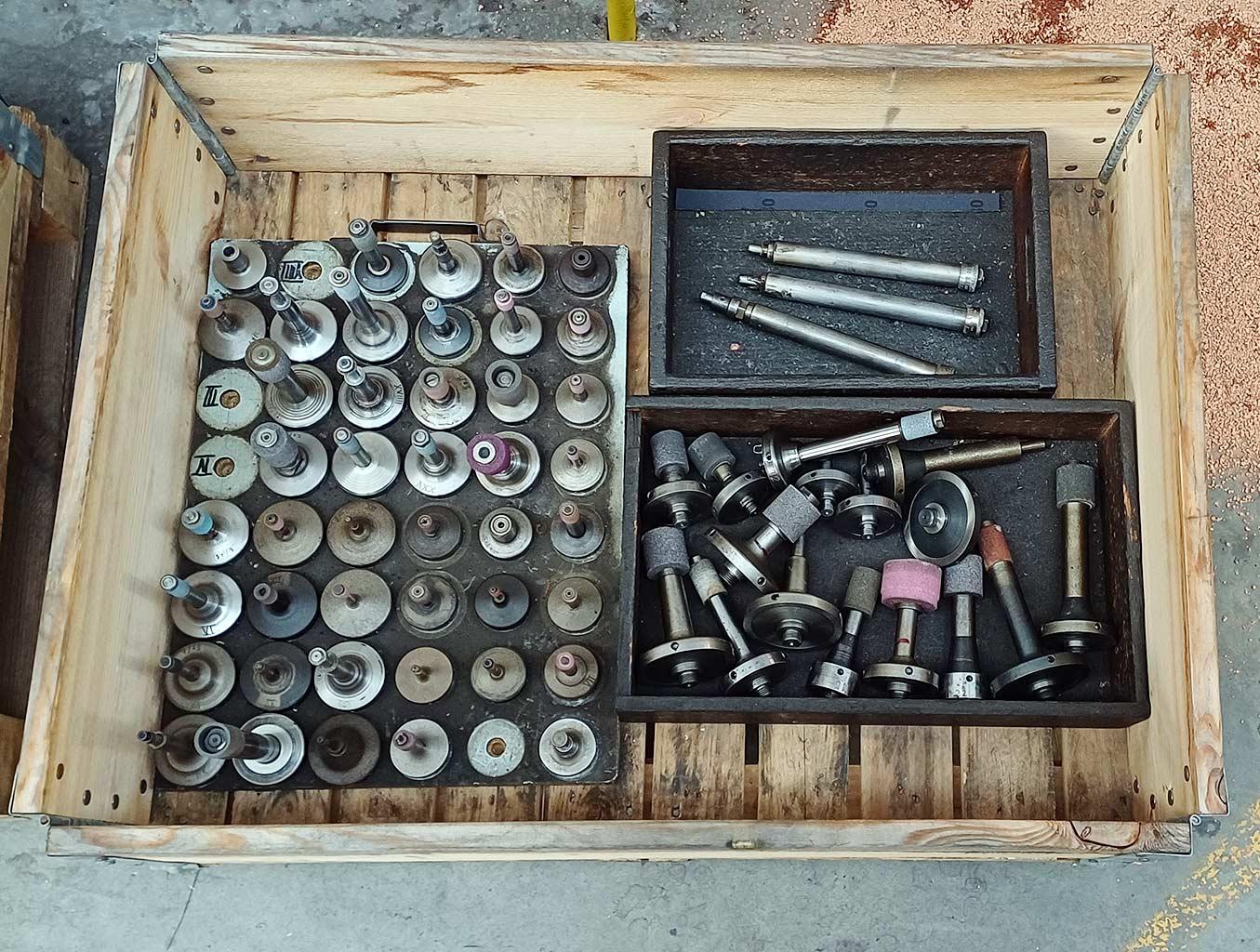

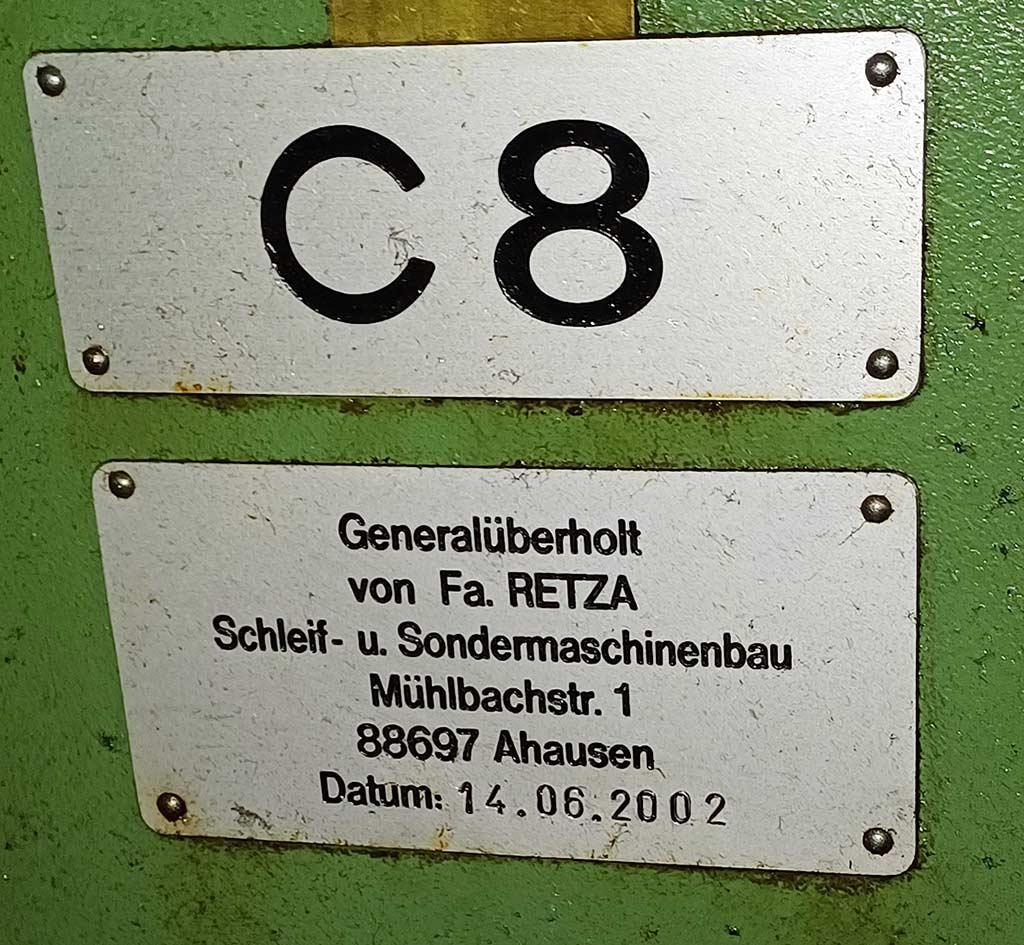

Bore: 50mm, grinding depth: 80mm, spindle axis-table center distance: 145mm, grinding wheel holder: 540mm, taper: Morse 4, workpiece spindle bore: 28mm, workpiece spindle swivel: 10°/30°, grinding spindle swivel: 130mm, grinding spindle transverse movement: 30mm, table longitudinal movement: 4mm/80mm, cooling pump capacity: 140l/min. Machine dimensions X/Y/Z: approx. 2100mm/1000mm/1400mm, weight: approx. 1600kg. Including accessories and calibration measuring device. The machine was overhauled in 2002. Documentation available. On-site inspection is possible.
Additional Details
