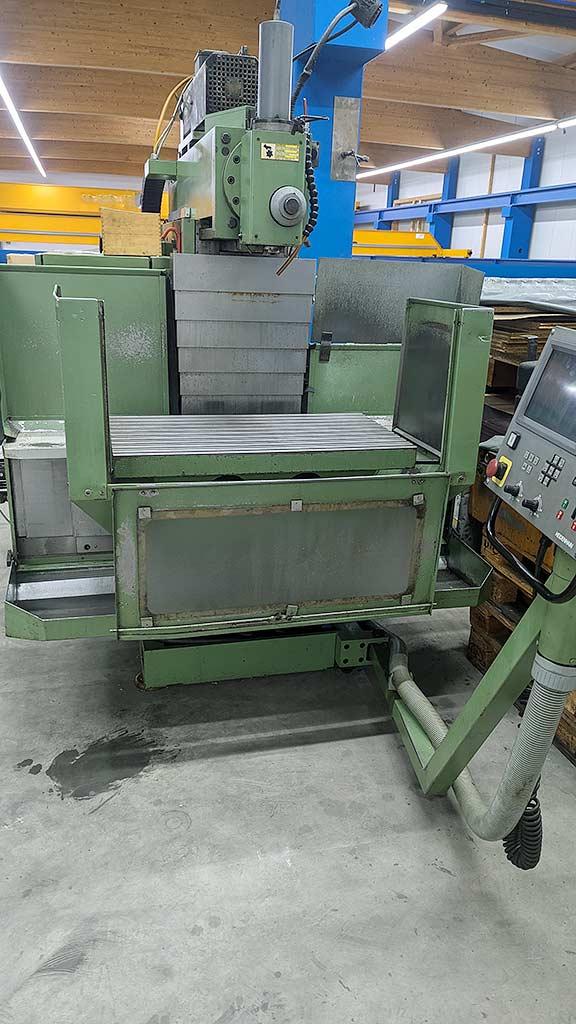

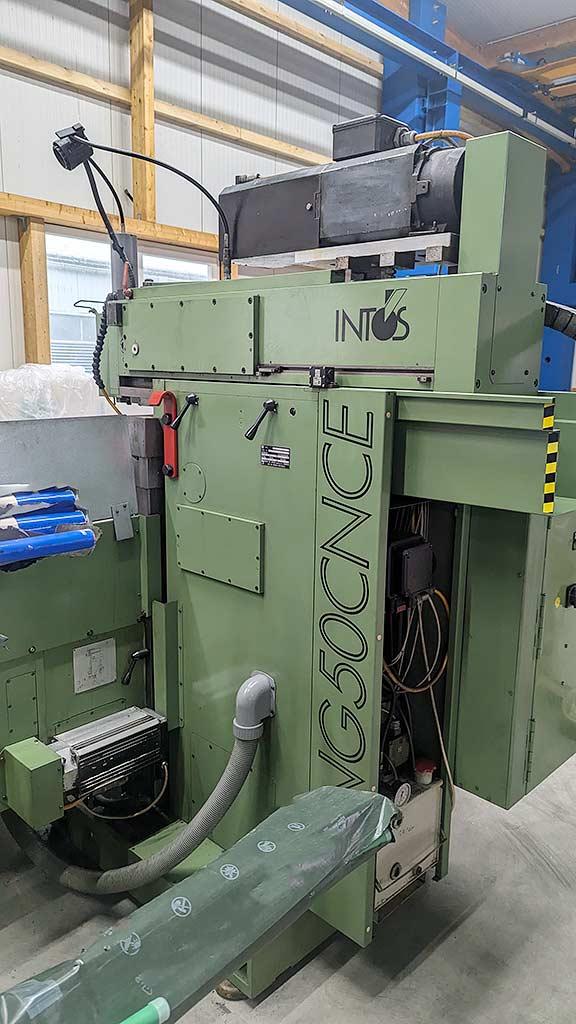

CNC Milling Machine Intos FNG50 CNC E
Specifications
Germany
Description

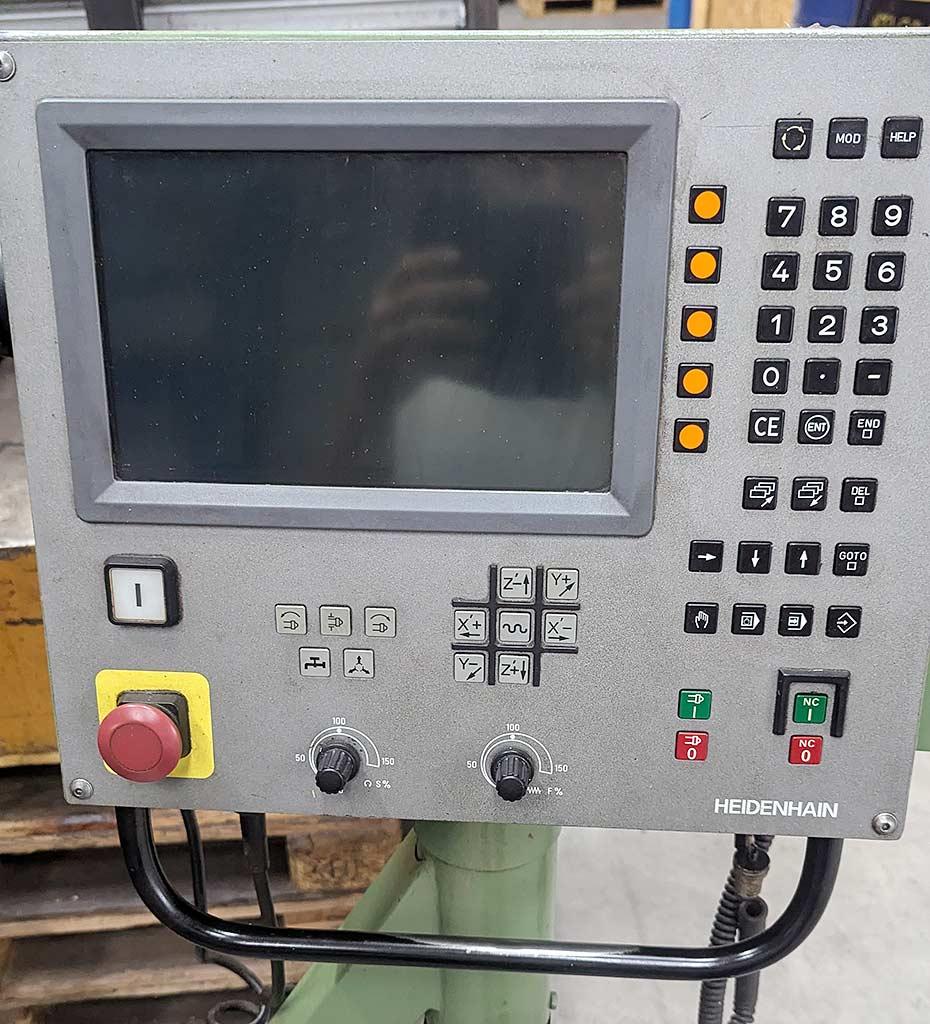

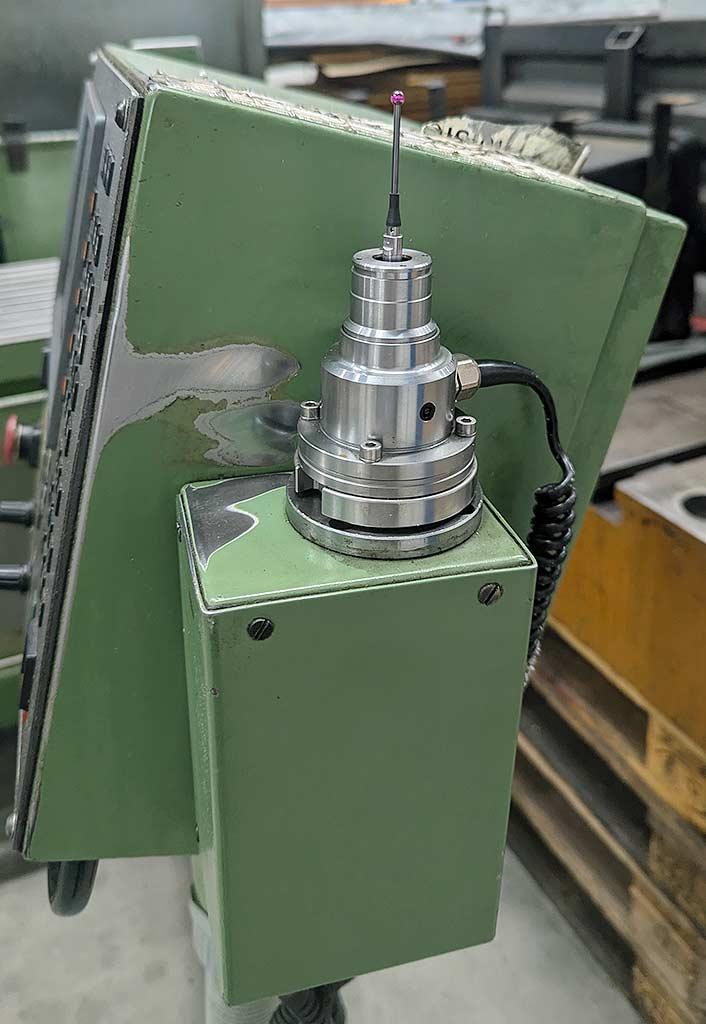

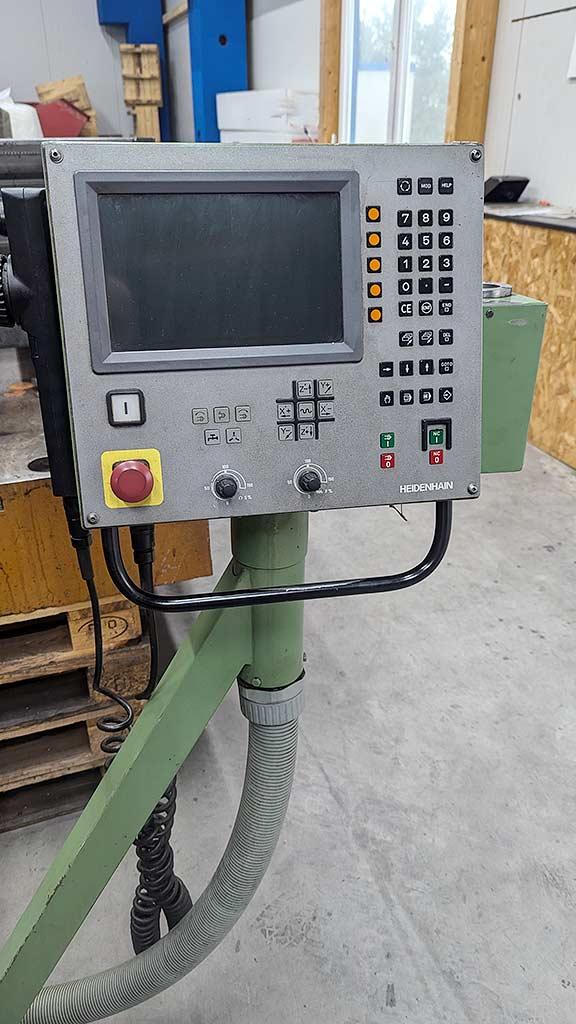

Travel X/Y/Z: 700mm/500mm/500mm, feed X/Y/Z: 5000mm/5000mm/2500mm/min, feed force X/Y/Z: 20kN/20kN/30kN. Spindle power: 7kW, speed: 3150rpm, spindle torque: 250Nm, spindle mount: ISO40. Vertical table: dimensions X/Z: 500mm/320mm, flute width: 14H8, axis distance: 50mm, number of flutes: 5. Angled table: Dimensions X/Y: 900mm/500mm, flute width: 14H8, axis distance: 50mm, number of slots: 10, machine dimensions X/Y/Z: approx. 1820mm/2050mm/2175mm, weight: approx. 2500kg, control: Heidenhain TNC 310, probe included. Documentation available. On-site inspection is possible.
Additional Details
