Powder Coating Plant Meeh Jumbo-Coat

Germany

Description

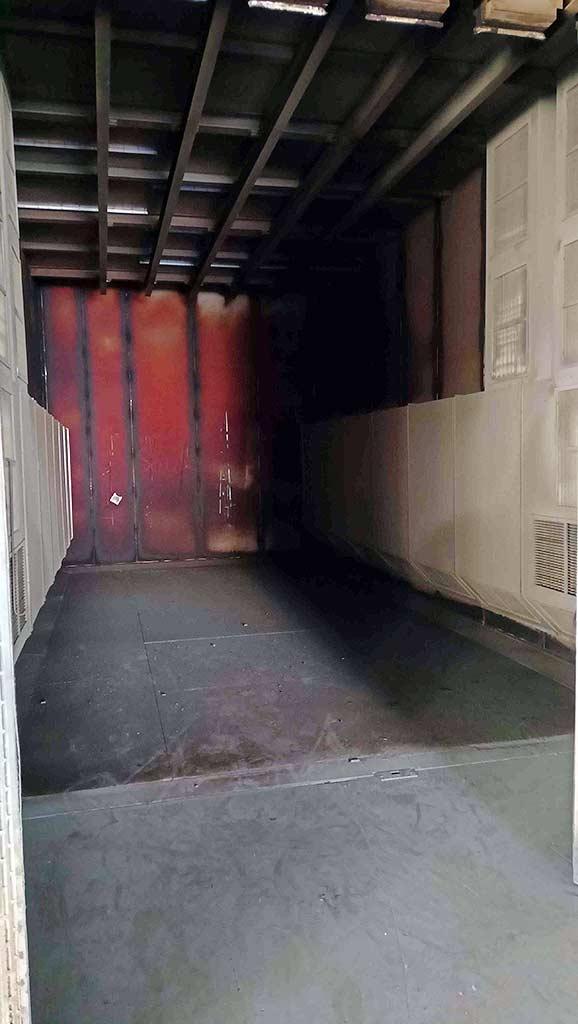

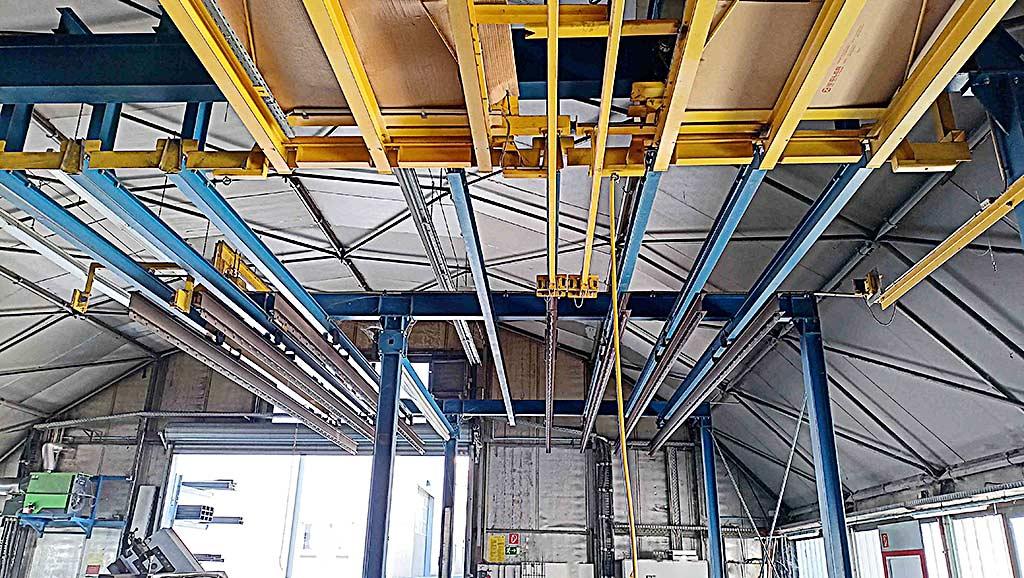

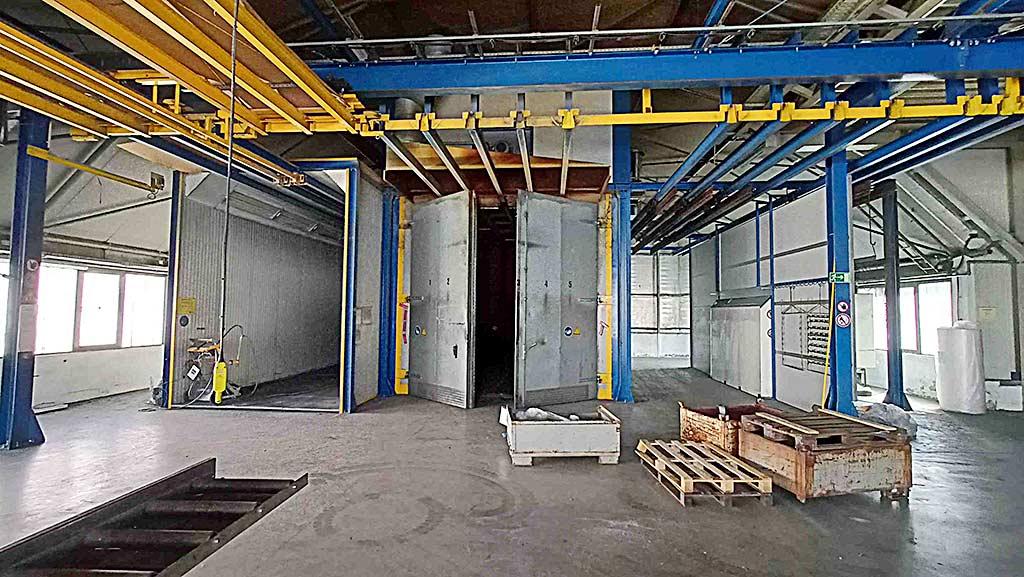

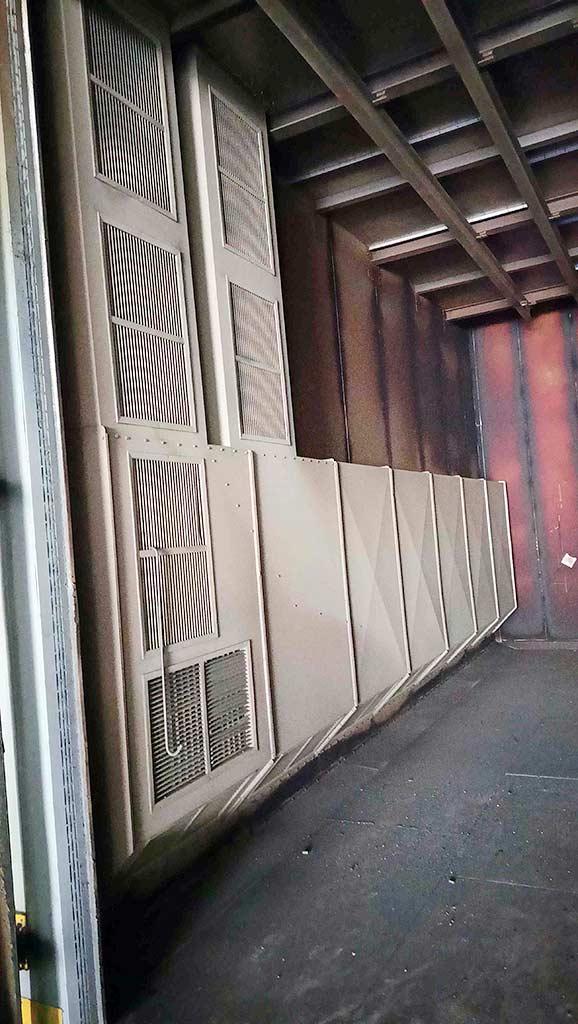

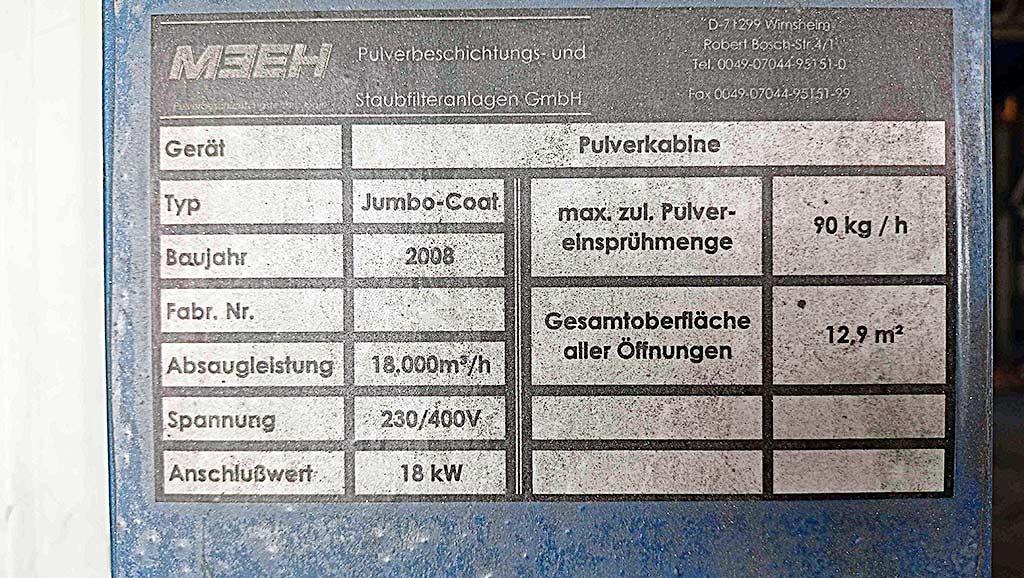

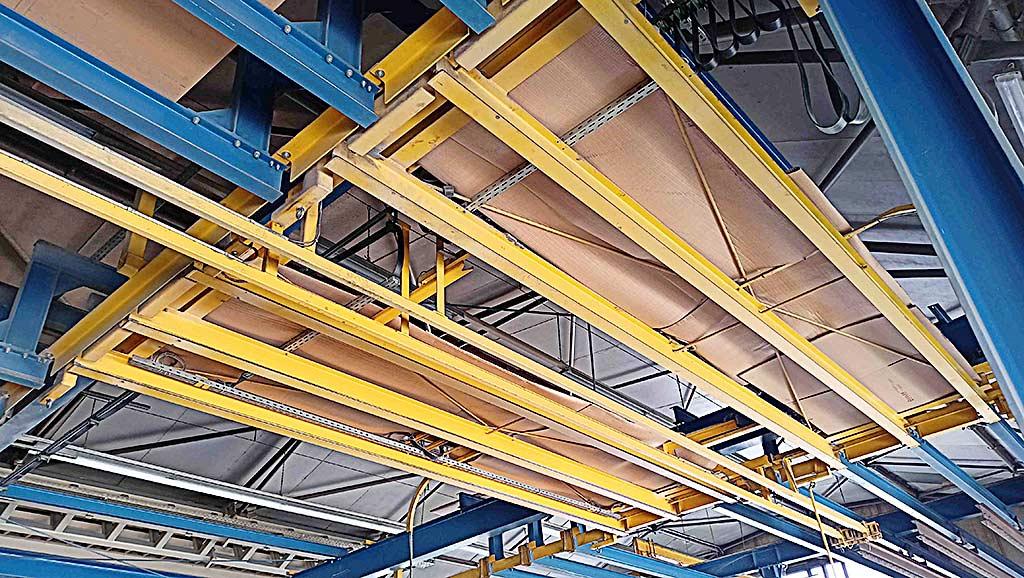

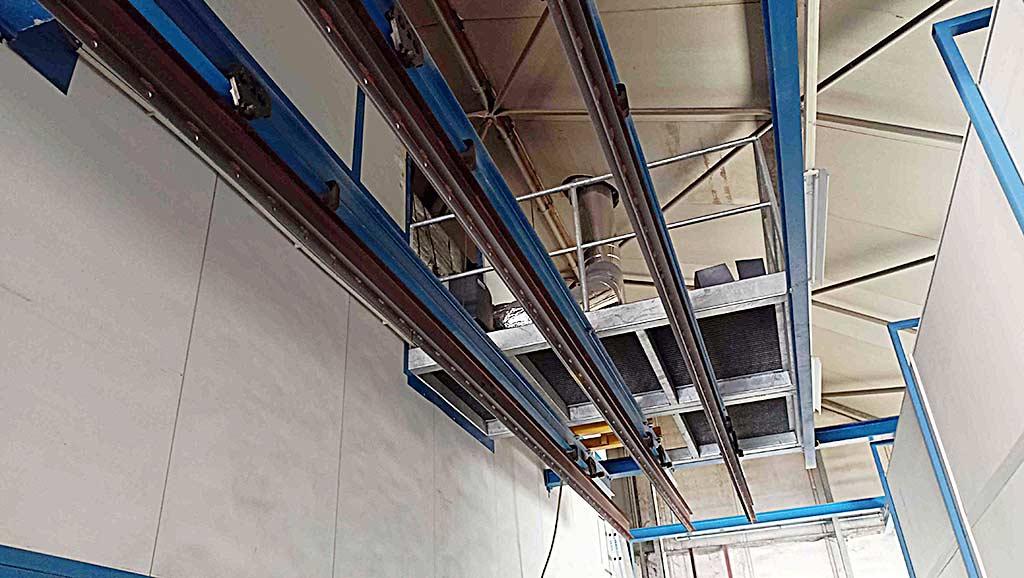

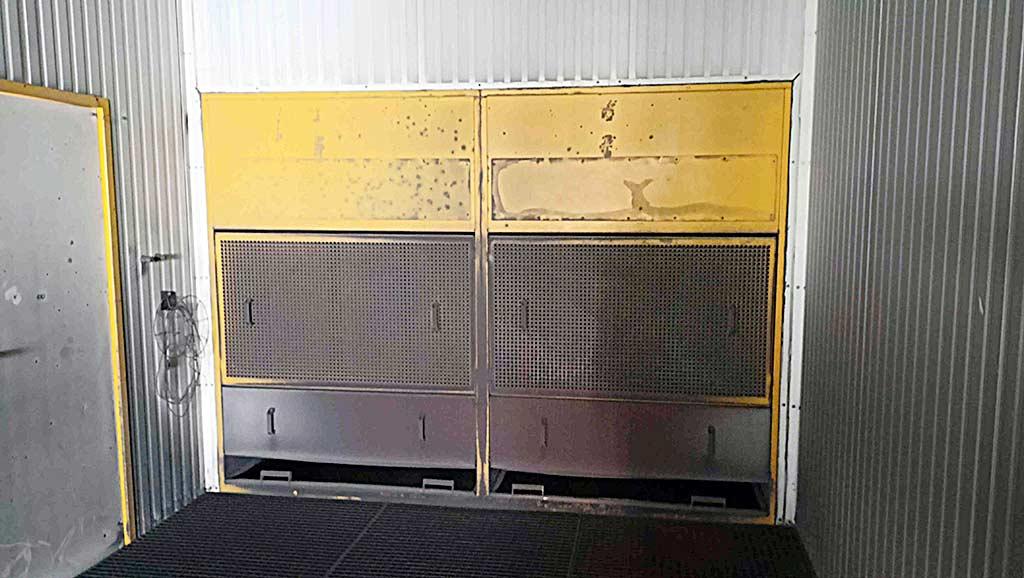

A complete bulk powder coating system MEEH powder coating and dust filter system is available. Product dimensions X/Y/Z: 8000mm/800mm/3000mm, max. product weight: 1000kg, total surface area of all openings: 12.9m², max. permissible powder injection quantity: 90kg/h, extraction capacity: 18000m³/h, total system dimensions X/Y/Z: approx. 28m/13m/6m, compressed air requirement: approx. 38nm³/h, compressed air: 8bar, connected load: approx. 30kW. 1) Manual powder stand with suction, internal dimensions X/Y/Z: 10m/3m/4m, external dimensions X/Y/Z: 10040mm/3370mm/4600mm. 2) Chamber dryer MEEH KTÖ240, year of construction: 2008, air capacity: 30000m³/h, heat output: 240kW, burner: Weishaupt, burner year of construction: 2019, fuel: heating oil, internal furnace dimensions X/Y/Z: approx. 8530mm/4610mm/5840mm, external furnace dimensions X/Y/Z: approx. 8200mm/3500mm/4000mm. 3) Lifting and lowering station with 2 chain hoists H/S 160, year of construction: 2008, speed: 4m/min, max. load: 2x500kg, lower edge of traverse - floor distance: approx. 3700mm. 4) Electric traversing platform EQ 160, year of manufacture: 2008, max. load: 2000kg, speed: 12m/min, max. traverses: 3, total traverses: 14, total traverse positions: 14, traverse length: 8m, load: 1000kg. Documentation available. On-site inspection is possible.
