CNC Universal Milling Machine Reckermann Delta1300 K

Germany

Description

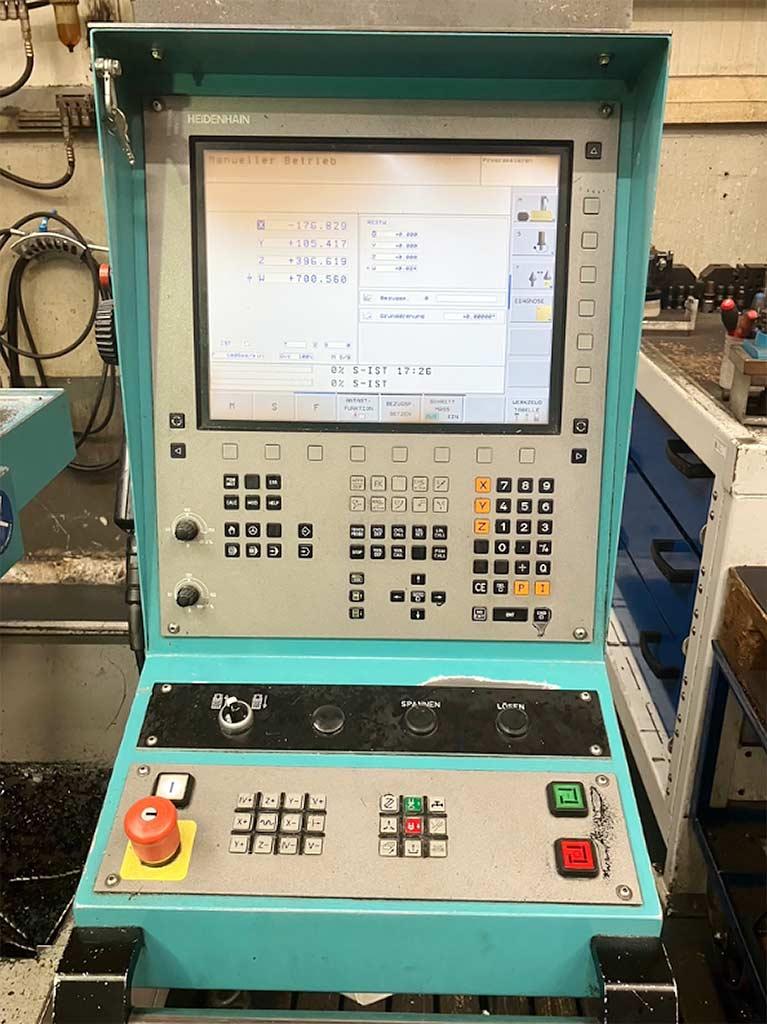

Horizontal spindle diameter: 100mm, Horizontal spindle speed: 3600rpm, Horizontal spindle power: 25kW, Horizontal spindle torque: 920Nm, Vertical milling spindle swivel range: +/-90°, Vertical spindle diameter: 90mm, Vertical spindle speed: 3600rpm, Vertical spindle power: 25kW, Vertical spindle torque: 920Nm. Travel X/Y/Z: 1500mm/500mm/450mm, feed X/Y/Z: 4000mm/min, feed force X/Y/Z: 12kN/12kN/15kN, rapid traverse X/Y/Z: 15m/10m/10m/min. Table dimensions X/Y: 1800mm/500mm, number of T-slots: 5, center slots: 18H7, clamping slots: 18H9, center-to-center distance: 100mm, table load capacity: 2000kg. Horizontal spindle table distance: 450mm, horizontal spindle counter-holder lower edge distance: 345mm, vertical spindle lower edge table distance: 350mm-800mm, column brush vertical spindle center distance: 100mm-600mm. Machine dimensions X/Y/Z: approx. 3400mm/2900mm/2600mm, weight: approx. 5600kg, control system: Heidenhain, operating hours: 61440h. On-site inspection is possible.
